Model型号 |
Unit |

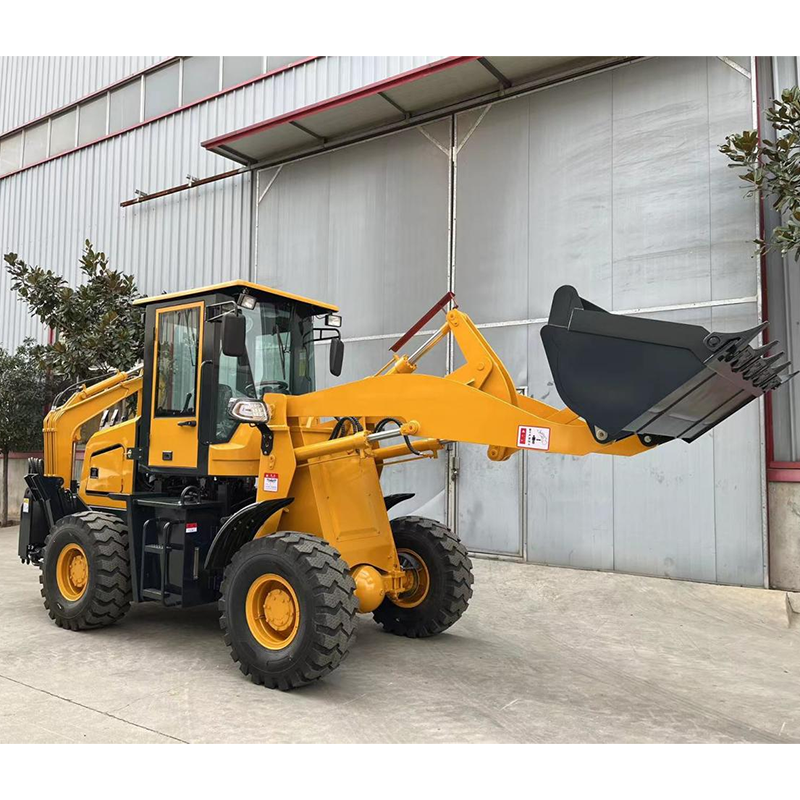

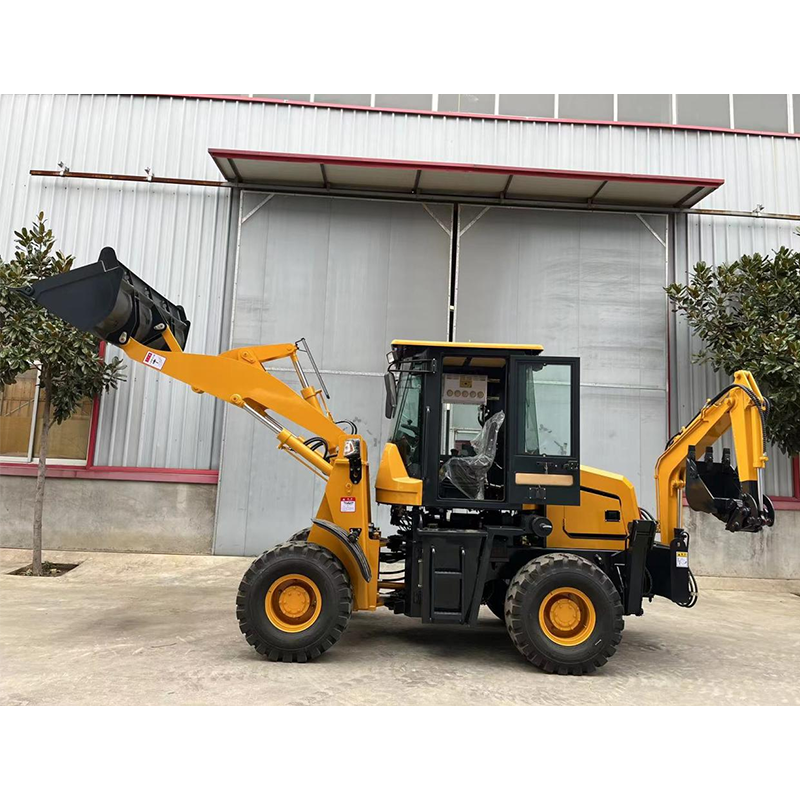

HT10-70 |
|
|
Performance Parameters参数 |
|
||
|
Dead-Weight自身重量 |
kg |
4200 |
|
|
Canopy/Cabin遮阳棚/驾驶室 |
|
Cabin |
|
|
Bucket斗 |
Capacity斗容量 |
m3 |
0.06 |
|
|
Width斗宽 |
mm |
400 |
|
|
Max. digging force最大挖掘力 |
kN |
12 |
|
Arm digging force臂挖掘力 |
kN |
4.5 |
|
|
basket铲斗 |
Bucket capacity 铲斗斗容 |
m3 |
0.6 |
|
|
Bucket width 铲斗斗宽 |
mm |
1800 |
|
Engine发动机 |
Brand/Model品牌/型号 |
|
云内 YN27GB |
|
|
Rated power/speed额定功率/转速 |
|
58/2400 |
|
|
Displacement排量 |
lt |
2.7 |
|
Main Pump主泵 |
Brand品牌 |
|
天津泰特 TAITE |
|
|
Pump type泵型号 |
|
T50/25/25 |
|
|
Flow rate流速 |
lt/min |
100/50/50 |
|
|
Traveling motor行走马达 |
cc |
|
|
Running speed (high/low)行走速度（高速/低速） |
km/h |
26 |
|
|
Pressure of the system系统压力 |
Mpa |
16 |
|
|
Max. traction最大牵引力 |
kN |
25 |
|
|
Ground pressure对地压力 |
kPa |
180 |
|
|
Gradeability爬坡能力 |
° |
30 |
|
|
Fuel tank capacity燃油箱容量 |
lt |
45 |
|
|
Hydraulic oil tank capacity液压油箱容量 |
lt |
45 |
|
|
传动系统Transmission System |
|||
|
Gearbox变速箱 |
|
|
|
|
Gears档位数 |
|
|
|
|
Driving form驱动形式 |
|
|
|
|
Scope of Work工作范围 |
|||
|
挖斗工作范围 |
Max. digging height最大挖掘高度 |
mm |
3500 |
|
|
Max. dumping height最大倾倒高度 |
mm |
2000 |
|
|
Max. digging depth最大挖掘深度 |
mm |
2000 |
|
|
Max. vertical digging depth最大垂直挖掘深度 |
mm |
2000 |
|
|
Max. digging radius最大挖掘半径 |
mm |
3400 |
|
铲斗工作范围 |
Maximum dumping height 铲斗卸载高度 |
mm |
3300 |
|
|
Loading and lifting capacity装载举升能力 |
kg |
1200 |
|
|
Maximum Rising Power最大崛起力 |
KN |
25 |
|
Outline Dimensions外观尺寸 |
|||
|
Overall Dimension (LxWxH) 整体尺寸（长*宽*高） |
mm |
5400X1870X2750 |
|
|
Wheel tread轮距 |
mm |
1510 |
|
|
Wheel base轴距 |
mm |
2200 |
|
|
Chassis ground clearance底盘离地间隙 |
mm |
280 |
|
|
Tyre轮胎 |
|||
|
Model规格 |
|
mm |
23.5/70-16 |
|
Pressure of Front wheel前轮气压 |
Mpa |
2.5 |
|
|
Pressure of Back wheel后轮气压 |
Mpa |
2.5 |
|
|
|
|
|
|
