Performance Parameters 参数
|
|
|
|
|
|
Dead-Weight 自身重量
|
kg
|
2550
|
2750
|
2550
|
|

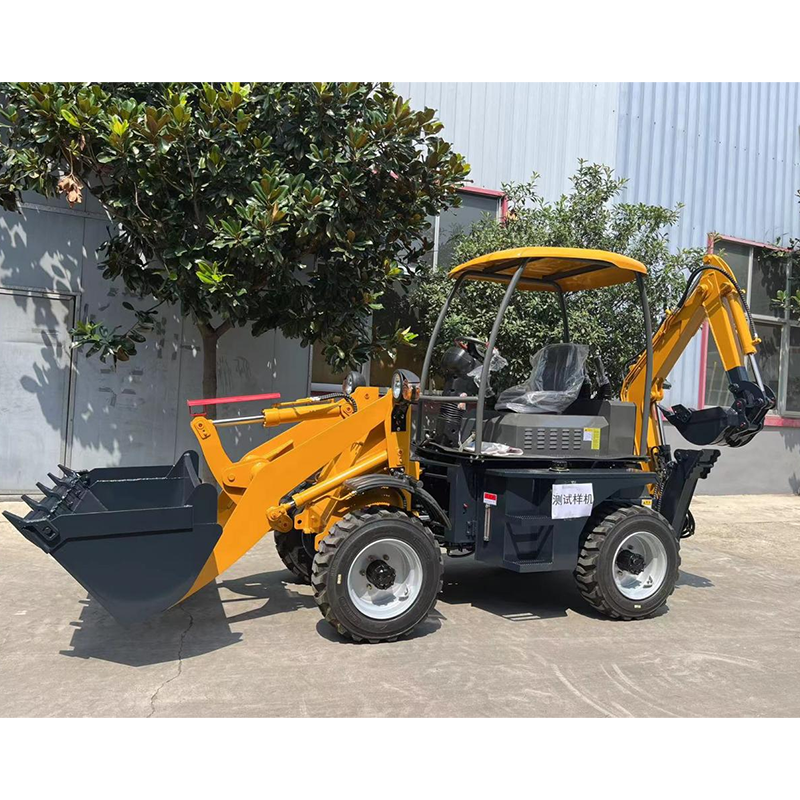

Canopy/Cabin 遮阳棚 / 驾驶室
|
|
Canopy
|
Canopy
|
Canopy
|
|
Bucket 斗
|
|
|
|
|
|
Capacity 斗容量
|
m³
|
0.04
|
0.04
|
0.04
|
|
Width 斗宽
|
mm
|
400
|
400
|
400
|
|
Max. digging force 最大挖掘力
|
kN
|
13
|
13
|
13
|
|
Arm digging force 臂挖掘力
|
kN
|
4.5
|
4.5
|
4.5
|
|
basket 铲斗
|
|
|
|
|
|
Bucket capacity 铲斗容
|
m³
|
0.5
|
0.5
|
0.5
|
|
Bucket width 铲斗宽
|
mm
|
1700
|
1700
|
1700
|
|
Engine 发动机
|
|
|
|
|
|
Brand/Model 品牌 / 型号
|
|
莱动 385
|
云内 490
|
KUBOTA 1703
|
|
Rated power/speed 额定功率 / 转速
|
kW/rpm
|
22.1/2300
|
37/2200
|
18.2/2200
|
|
Displacement 排量
|
lt
|
1.617
|
2.7
|
1.7
|
|
Main Pump 主泵
|
|
|
|
|
|
Brand 品牌
|
|
天津泰特 TAITE
|
天津泰特 TAITE
|
天津泰特 TAITE
|
|
Pump type 泵型号
|
|
T20/20
|
T25/16
|
T16/16
|
|
Flow rate 流速
|
lt/min
|
40/40
|
50/32
|
32/32
|
|
Traveling motor 行走马达
|
cc
|
160
|
TC 变矩器
|
160
|
|
Running speed (high/low) 行走速度（高速 / 低速）
|
km/h
|
13/4
|
13
|
13/4
|
|
Pressure of the system 系统压力
|
Mpa
|
16.5
|
16.5
|
16.5
|
|
Max. traction 最大牵引力
|
kN
|
15
|
15
|
15
|
|
Ground pressure 对地压力
|
kPa
|
110
|
110
|
110
|
|
Gradeability 爬坡能力
|
°
|
25
|
25
|
25
|
|
Fuel tank capacity 燃油箱容量
|
lt
|
50
|
50
|
50
|
|
Hydraulic oil tank capacity 液压油箱容
|
lt
|
50
|
50
|
50
|
|
传动系统 Transmission System
|
|
|
|
|
|
Gearbox 变速箱
|
|
定轴式动力换挡 Fixed axle power shift
|
|
|
|
Gears 档位数
|
|
前进 2 档，后退 2 Four Gears Ahead, Four Gears Astern
|
|
|
|
Driving form 驱动形式
|
|
四轮驱动 Four-wheel drive
|
|
|
|
Scope of Work 工作范围
|
|
|
|
|
|
挖斗工作范围
|
|
|
|
|
|
Max. digging height 最大挖掘高度
|
mm
|
3000
|
3200
|
3000
|
|
Max. dumping height 最大倾倒高度
|
mm
|
2000
|
2000
|
2000
|
|
Max. digging depth 最大挖掘深度
|
mm
|
1650
|
1650
|
1650
|
|
Max. vertical digging depth 最大垂直挖掘深度
|
mm
|
1650
|
1650
|
1650
|
|
Max. digging radius 最大挖掘半径
|
mm
|
2900
|
2900
|
2900
|
|
铲斗工作范围
|
|
|
|
|
|
Maximum dumping height 铲斗卸载高
|
mm
|
2200
|
2200
|
2200
|
|
Loading and lifting capacity 装载举升能力
|
kg
|
800
|
800
|
800
|
|
Maximum Rising Power 最大崛起力
|
kN
|
25
|
25
|
25
|
|
Outline Dimensions 外观尺寸
|
|
|
|
|
|
Overall Dimension (LxWxH) 整体尺寸（长宽高）
|
mm
|
4400X1670X2400
|
4750X1670X2530
|
4400X1670X2450
|
|
Wheel tread 轮距
|
mm
|
1130
|
1130
|
1130
|
|
Wheel base 轴距
|
mm
|
1780
|
1780
|
1780
|
|
Chassis ground clearance 底盘离地间隙
|
mm
|
230
|
240
|
230
|
|
Tyre 轮胎
|
|
|
|
|
|
Model 规格
|
mm
|
10-16.5
|
12-16.5
|
10-16.5
|
|
Pressure of Front wheel 前轮气压
|
Mpa
|
2.5
|
2.5
|
2.5
|
|
Pressure of Back wheel 后轮气压
|
Mpa
|
2.5
|
2.5
|
2.5
|
